Energy Saving Plastic Injection Machine Processing Equipment



The Plastic Injection Machine has the following features:

1. High load oil bearing ,the hinge and sliding parts are made of oil-bearing,reducing the use of lubricating oil,maintenance costs,oil pollution and improving the cleanliness of the machine.

2. Synchronous hydraulic precision mold frame ,hydraulic motor,center positioning gear modulating system,make the modulating system more perfect.

3. Built-in adjustment free safety lever ,reduce outleakage ,offer higher safety.

4. Adjustable second plate wear-resistant sliding foot ,using special polymer wear-resistant material which containing oil sliding foot,adjustable height,balance weight,durable and clean.

5. Designed reserve extra large auxiliary spare space ,convenient for wiring connection of precision moulds’ electricity,gas ,water,oil and flexible configuration of conveying device.

6. Optimized design of high rigidity precision mode-locking system ,optimized formwork design,front hinge lug and two plate joint casting,cross head guide bar support,rear hinge lug side and tail plate joint casting.





7. Intelligent volumetric lubrication distribution system ,average oil distribution,high lubrication efficiency,increase hinge life.

8. Modular energy saving high response oil way design ,the speed is increased by more than 25%.

9. Large screen high speed precision microcomputer controller ,automatic mould adjustment function,input mould thickness,can automatically adjust the position of the templates; screw speed detection; the operator can accurately adjust the screw speed to achieve the best plasticizing effect; about temperature,the computer is with PID closed-loop control,the temperature can be set within the range of 399°C ±1; 400 megabit high-speed microprocessor,precise control.Powerful function,the data interface of European standard mechanical arm etc. is optional; the plastic injection parameters(such as filling pressure) can be displayed in curve as optional etc.,easy to set process parameters and understand the machine operation.

10. Professional plasticizing and ejection solution ,for a variety of raw materials and processes,can provide complete professional screw barrel combination,and can provide various materials for customers’ choice,to improve the products quality.

11. Balanced double injection transfer structure ,the double injection transfer cylinder is balanced on both sides of barrel to ensure that the nozzle won’t offset,good sealing and the glue isn’t easy to leak.

12. High precision linear guide rail ejection mechanism ,the injection and plasticizing system adopts linear guide rail,high precision,high rigidity and low friction coefficient ,which makes the motion resistance of injection moulding and melting glue low and stable,sensitive adjustment,will benefit the injection moulding for low viscosity and high temperature materials.

13. Shell and tube type high efficiency cooler ,small size and high cooling efficiency ensure the oil temperature stable.

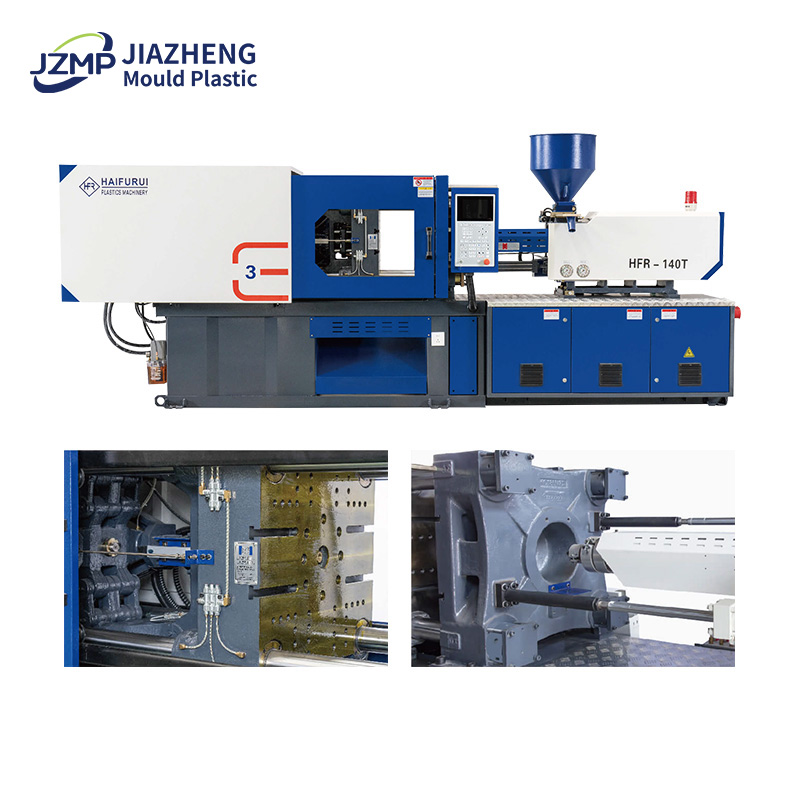

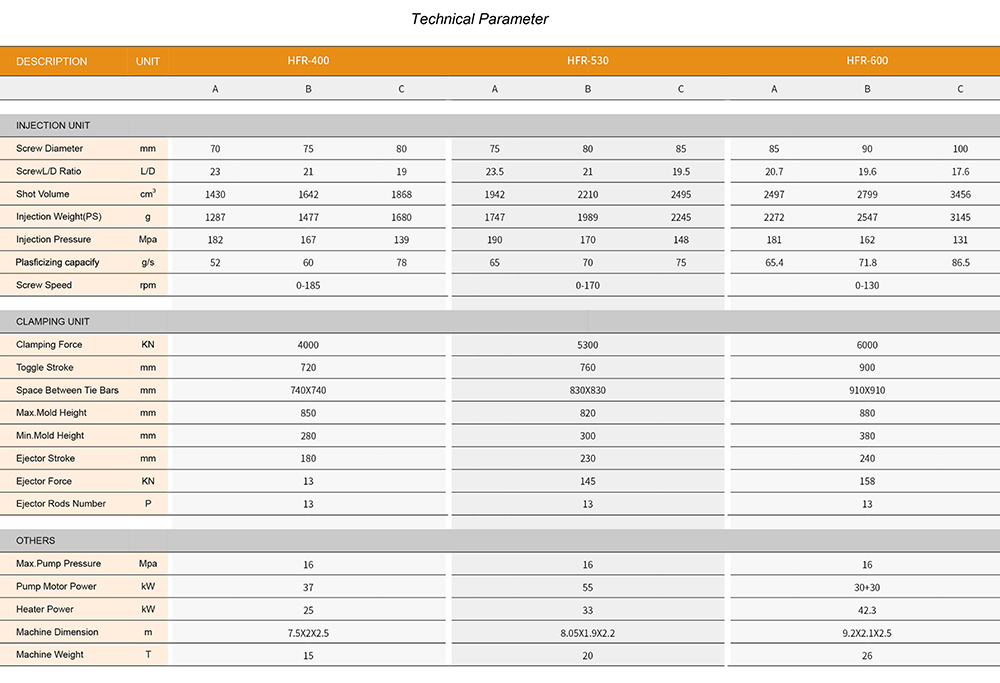

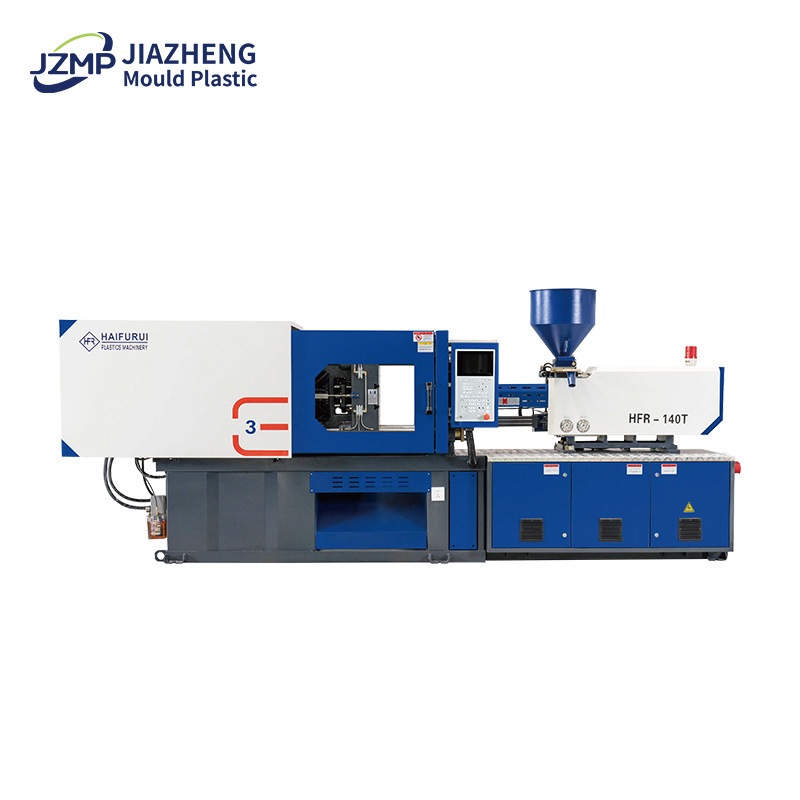

We have various Injection Machine,the below is detailed info. with photos for your better understandings .And our moulding machine accept customization ,if you have any special requirement ,please let us know ,both of us can be discussed .Also we’re glad to offer second hand injection mould machine and Plastic Mould ,just tell your demands to us .
