Strong Clamping Plastic Molding Machine Injection Machine

Strong Clamping Plastic Molding Machine Injection Machine

Get Latest Price

Min. Order:

1 Ton

Contact Now

Product Description

Product Attributes

Brand: JZMP

Packaging & Delivery

Selling Units	:	Ton
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

JZMP



Product Description

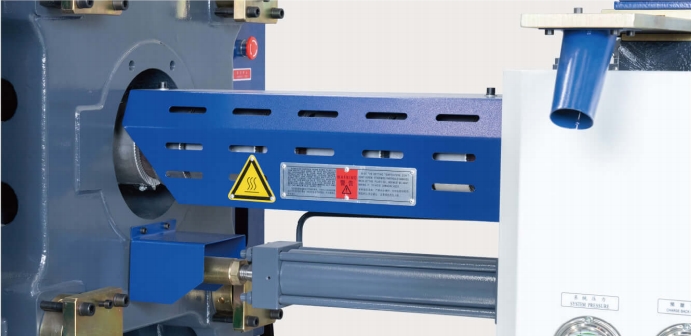

Here are the injection unit informations of Plastic Injection Machine :

1. By using PlD temperature control, the hopper temperature can be accuratelycontrolled.

2. There are three types of activities and four types of screws and barrels, whichhave been optimized and designed, including nitriding, hard chromium plating,bimetallic, etc

3. Dual guide pillar linear guide rail support, dual cylinder smooth and fastinjection.

4. High torque hydraulic motor with stable pre molding quality, high-precisionelectronic ruler position detection, and accurate measurement.

5. The multi-stage injection speed and pressure, as well as the multi-stage holdingpressure setting, can be controlled from three ways: injection time, position,and pressure to ensure the quality of the molding.

6. Multi stage pre molding back pressure and pre molding speed are controlled bycomputer, with screw pre molding for anti flow and automatic cleaning.

7. Prevent cold start function to ensure that the screw and barrel are notdamaged.

Our Plastic Machinery has features of accurate injection and smooth operation,the principle is adopting a short and powerful dual cylinder injection system and high-precision linear guide ra, combined with a low inertia and highresponse injection mechanism, ensuring smooth injection action and no deformation of the fixed template, optimizing the design ofscrew components to achieve beter plasticizing ability and effect. Automatic material cleaning, anti salivation, anti cold start delay andother functions ensure the efficiency, simplicity,and safety of work.

The below is comparison of Injection Machine with new rail type and traditional guide pillar type .

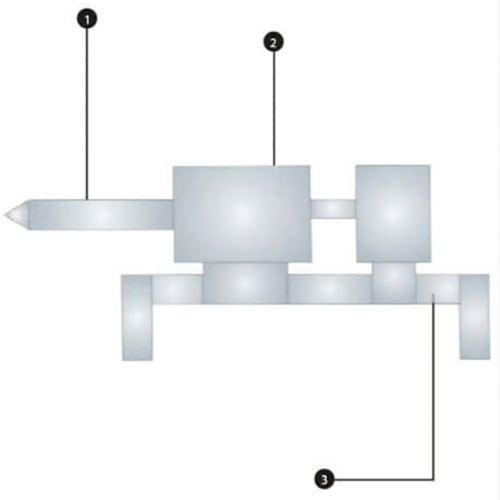

Traditional Guide Pillar Type

1. The front end of the material pipe sags,causing screw wear.

2. Single cylinder injection displacement,poor nozzle sealing and high pressure injection are prone to danger.

3. The fixed seat with a large span is prone to sagging,bending and deformation of the guide column,and the resistance changes during injection and plasticization which affects the forming accuracy.

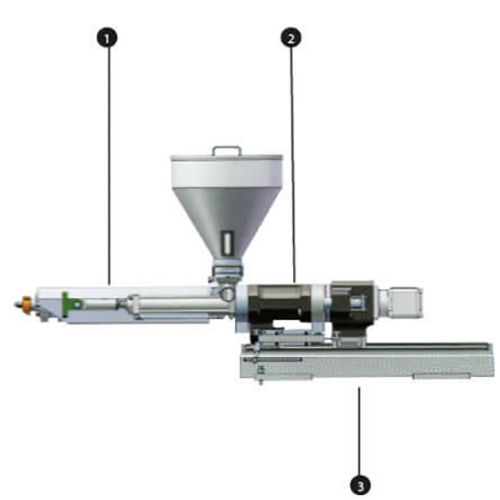

New Rail Type

1. Linear guide rail,high-precision fit,material pipe does not sag .

2. Balanced dual cylinder injection displacement ,reliable sealing and high pressure injection to prevent glue leakage .

3. Floor mounted linear guide rail with high accuracy,low friction coefficient,uniform and consistent resistance during injection molding and plasticization processes ,and sensitive adjustment,suitable for precision injection molding and high-speed injection molding.
